Duct & AHU Ultrasonic Humidifiers

Integrate ultrasonic humidification into your ventilation system. CleanSPOT supplies duct humidifiers from 4–35 L/h per unit and AHU systems typically from 28–84 L/h, with larger capacities engineered through modular configurations.

Select a configuration around your airflow, available installation space and humidity demand. Depending on the project, options include differential-pressure airflow protection, automatic water management and ON/OFF or 0–10 V control.

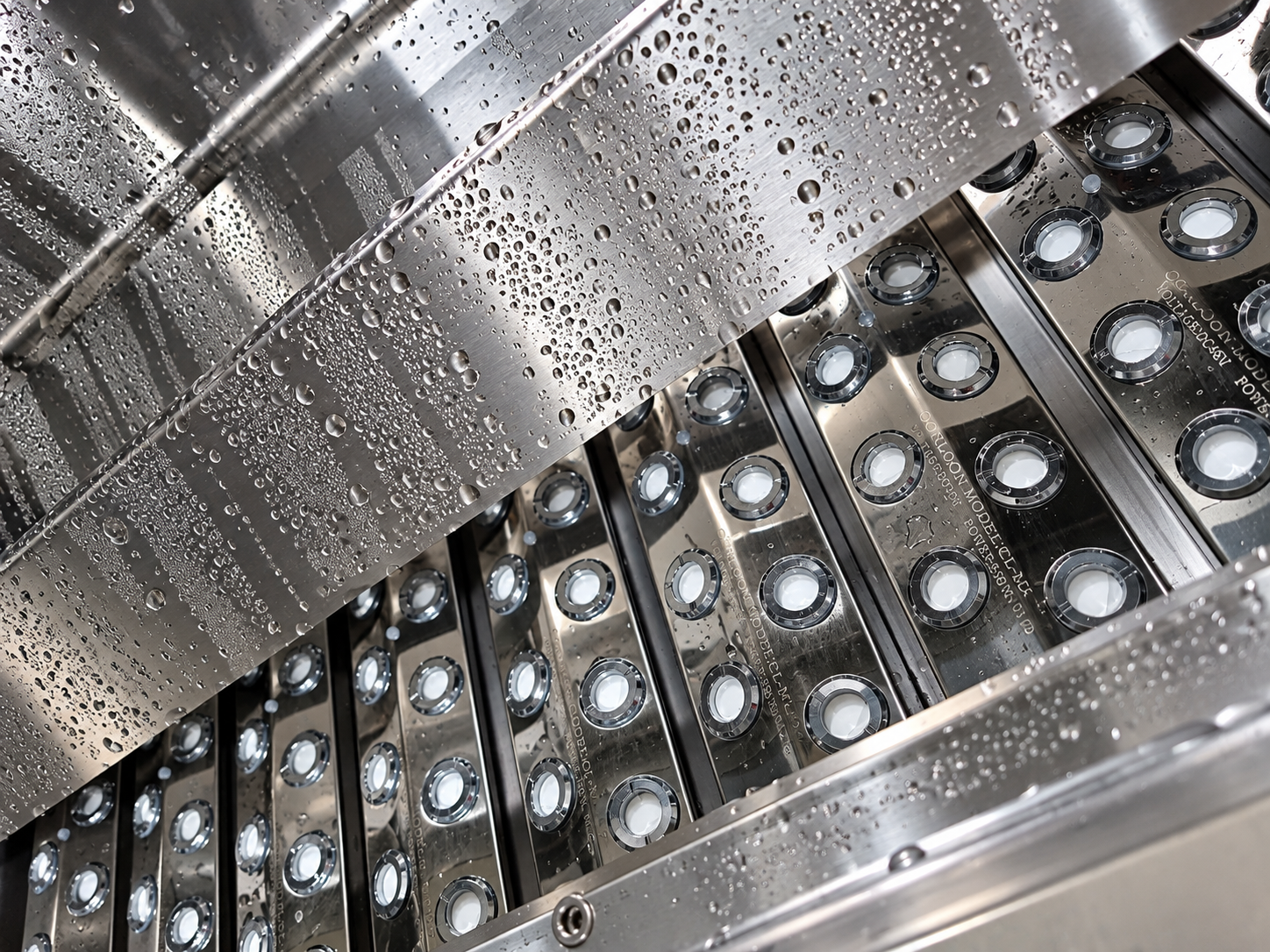

CleanSPOT duct ultrasonic humidifier installation

Choose a Duct or AHU Configuration

Duct humidifiers introduce ultrasonic mist into ventilation ductwork, using the existing air stream for distribution. AHU systems integrate the generation modules and mist distribution into an air handling unit, with capacity and controls selected for the central HVAC installation.

Equipment and options are confirmed in the project specification. If your facility needs humidification directly inside individual rooms, explore our direct-room ultrasonic humidifiers.

CleanSPOT duct humidifier installed in ventilation ductwork
Duct Configuration
CleanSPOT ultrasonic humidifier integrated into an air handling unit
AHU Configuration

Compare Duct and AHU Configurations

Selection Point Duct Configuration AHU Configuration
Installation Within ventilation/HVAC duct systems Integrated into an air handling unit
Capacity range 4–35 L/h per unit Typically 28–84 L/h; larger modular systems available
Distribution Mist introduced into duct airflow Distribution adapted to the AHU configuration
Assembly options Stainless-steel assembly, inspection section, transparent inspection panel and drain connection Ultrasonic modules, mist distribution, water filtration and automatic water management
Airflow protection Differential-pressure safety switch available Differential-pressure airflow protection available
Electrical/control cabinet Specified for the selected configuration IP65 cabinet available

Controls That Follow HVAC Demand

Control Integration

CleanSPOT humidifiers can receive an ON/OFF signal from a compatible humidity controller, humidistat, PLC or building management system. A configuration with a 0–10 V analogue input allows output to follow the demand signal from an external controller.

Airflow Protection

A differential-pressure switch can confirm airflow before humidification starts. This option prevents humidification when the ventilation system is not operating. Specify the required control signal and airflow protection when requesting your system configuration.

Water Management & Maintenance

Configuration-dependent functions include automatic filling, dual water-level monitoring, dry-run protection, thermal protection, automatic drainage and reservoir emptying. Programmable drain intervals can be set from 1–99 hours where included. An integrated 265nm UV-C LED provides an additional hygiene measure inside the water tank.

HOW IT WORKS

How Duct & AHU Humidification Works

Central integration

Installs directly into ductwork or an AHU, humidifying air before it's distributed across the areas served by the ventilation system.

Reverse osmosis water

RO water prevents mineral deposit buildup and keeps mist output clean.

Mist distribution

The generated mist enters the ventilation airflow for distribution to the areas served by the duct or AHU.
OUR PROCESS

How We Work

From initial plan to installed system, trained, and backed by a year of support.

01

Consultation & Plan

You send us a plan, or we visit your facility. Together we define the right humidification setup for your needs.
02

Ordering

Once confirmed, production begins. Standard lead time is 30 days for orders up to 100 units, larger orders may take longer.
03

Delivery & Installation

Systems are shipped to you directly, or our team installs on-site when needed. IQ/OQ documentation provided to support your compliance audits.
04

Training

Your team is trained on operation and maintenance after installation.
05

Guarantee & Support

One year of technical support included with every system.
CleanSPOT installation and support process for duct and AHU humidifiers
INSTALLATION PROCESS
Built Around Your Facility
WHERE THESE UNITS ARE INSTALLED

Industries Served

Cannabis Cultivation

Consistent RH across the areas served by the ventilation system, from propagation through cure.

Pharmaceutical

Humidity-control configurations integrated directly into your HVAC system.

Laboratories & Cleanrooms

Stable RH across labs and cleanrooms, distributed centrally.

Food Production & Cold Storage

Consistent humidity across storage and production areas served by the ventilation system.

Agriculture & Greenhouses

Facility-wide humidity management for controlled-environment agriculture.

Warehouses, Printing & Textile

Central humidity distribution for warehousing, printing, paper and textile production.
PRICING

Indicative Pricing by Capacity

Pricing per liter/hour of capacity, for duct installations up to 35 L/h per unit. AHU pricing depends on module count and configuration, request a quote. Final pricing is confirmed with our team based on your installation, control setup and order volume.

4–10 L/h MODELS
€99
per L/h of rated capacity
14–21 L/h MODELS
€95
per L/h of rated capacity
28–35 L/h MODELS
€85
per L/h of rated capacity

Pricing includes installation, control integration, and multi-unit setup for your facility.

Get a firm quote
BUYING QUESTIONS

Frequently Asked Questions

Can an ultrasonic humidifier be installed in existing ductwork? −
A CleanSPOT duct configuration is designed to introduce mist into ventilation ductwork. Suitability for a particular retrofit depends on the airflow and physical layout. Share the duct dimensions and operating conditions so the arrangement can be assessed before equipment selection.
What capacity is available for an air handling unit? +
AHU systems typically range from 28–84 L/h. Several ultrasonic modules can be combined when a larger capacity is required. Duct units have a separate range of 4–35 L/h per unit, these ranges describe different configurations.
Can the humidifier connect to a PLC or BMS? +
Depending on configuration, integration uses ON/OFF control and/or a 0–10 V analogue signal. State the interface required by your controls contractor so the supplied configuration can be matched to the installation.
How does the system avoid running without ventilation airflow? +
Duct and AHU configurations can include differential-pressure airflow protection. The switch confirms airflow before humidification is enabled. Include this requirement in the enquiry so it is explicitly included in the proposed equipment scope.
How is pricing structured? +
Duct units have indicative pricing per L/h of rated capacity. AHU systems are quoted according to module count, configuration and installation scope. Pricing includes installation and control integration. Contact us for a firm quote based on your specific configuration.
Size the System Around the Moisture Load

Required capacity depends on operating conditions, not floor area alone. Supply airflow, fresh-air percentage, supply temperature, existing and target relative humidity, air changes and process moisture loads all influence selection.

Send us the duct or AHU dimensions, available installation space, airflow, supply-air temperature, current and required RH, water-supply information and preferred control interface. CleanSPOT can use these details to recommend the installation arrangement and required L/h capacity.
