DIRECT ROOM. DUCT. AHU.

Industrial Ultrasonic Humidifiers

CleanSPOT industrial ultrasonic humidifiers provide humidity control for individual rooms, ventilation ducts and air handling units. Choose a direct-room configuration or a system integrated into your HVAC installation. Standard configurations cover 4–84 L/h, with higher capacities available through modular design.

We help match the installation, humidification capacity and control interface to your facility's operating conditions.

Request system sizing Compare installation options

Direct room 4–35 L/h | Duct 4–35 L/h per unit | AHU typically 28–84 L/h, modular expansion available

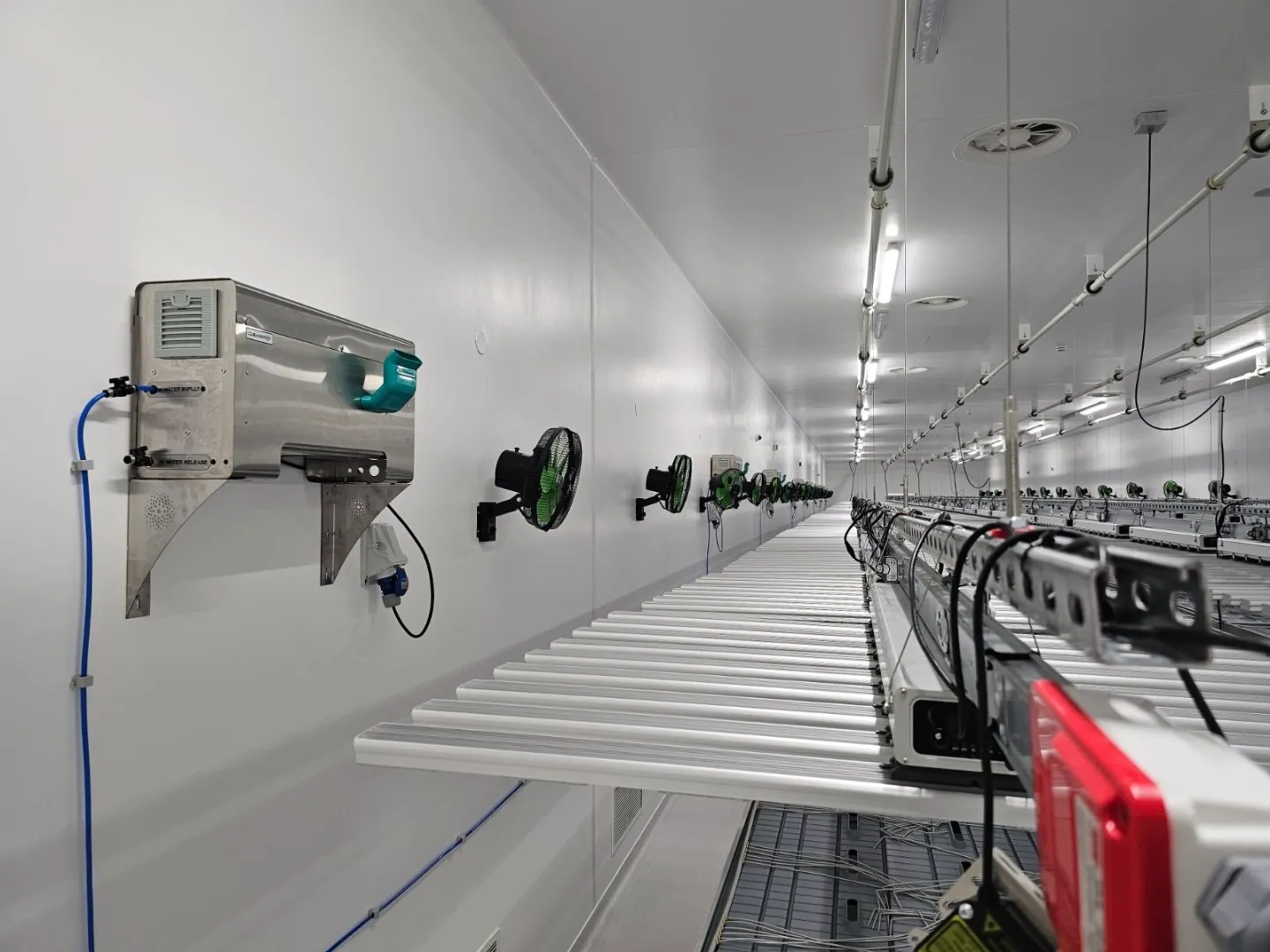

CleanSPOT ultrasonic humidifier installation in an industrial facility

Choose Your Humidifier Installation

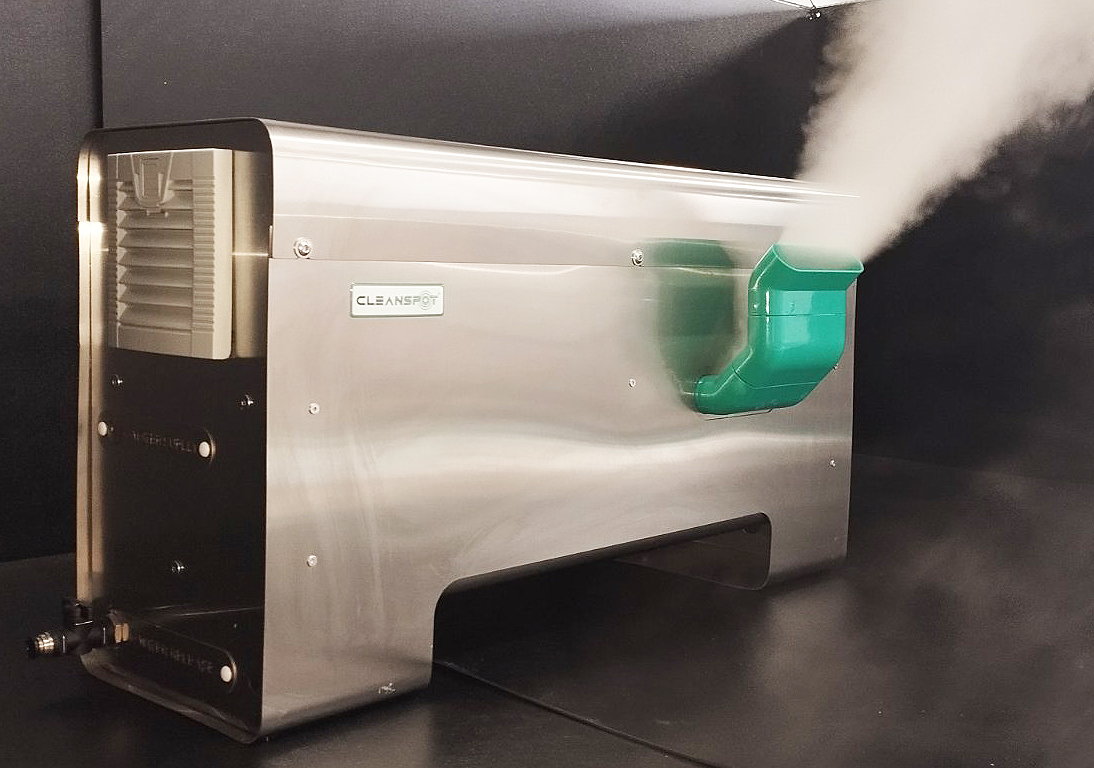

Direct Room

Direct-room ultrasonic humidifiers introduce mist directly into the conditioned space. Choose this arrangement when individual rooms or production zones need local humidity control, or when central HVAC humidification is unavailable. Wall and ceiling installation options are available.

Explore direct room ultrasonic humidifiers →

CleanSPOT duct and AHU ultrasonic humidifier

Duct & AHU

Duct and AHU ultrasonic humidifiers introduce mist into ventilation airflow. Duct units suit integration into ventilation systems, while AHU configurations support centralised installations and modular capacity requirements. Airflow protection can be incorporated into the selected configuration.

Explore duct and AHU humidifiers →

Compare the CleanSPOT Range

Final capacity and configuration are selected for the project. Output alone does not determine how much floor area a system can serve.

Selection Factor	Direct Room	Duct	AHU
Humidification location	Directly into the room	Ventilation duct airflow	Air handling unit
Capacity range	4–35 L/h per unit	4–35 L/h per unit	Typically 28–84 L/h
Higher demand	Multiple units in parallel	Project-specific selection	Modular expansion
Installation focus	Wall or ceiling	Duct arrangement and airflow	AHU integration and module layout
Control options	ON/OFF or 0–10 V, configuration-dependent
Next step	Review room-unit models	Review duct requirements	Discuss AHU configuration

Built for Facility Integration

Control Integration

Depending on configuration, CleanSPOT humidifiers accept ON/OFF or 0–10 V proportional control from a compatible external humidity controller, PLC or building-management system. Specify the available signal and control arrangement when requesting a quotation.

Water Management & Maintenance

Configurations can include automatic filling, drainage and reservoir emptying, with dual water-level monitoring, dry-run protection and thermal protection. An integrated 265nm UV-C LED provides an additional hygiene measure inside the water tank.

These features complement appropriate water treatment, cleaning and routine maintenance.

Sized From the Actual Load

Room volume is only one input. Temperature, current and target RH, fresh-air flow, air changes and process conditions all influence required capacity. Our engineering support considers these conditions to recommend an installation type and output in L/h.

HOW IT WORKS

How Ultrasonic Humidification Works

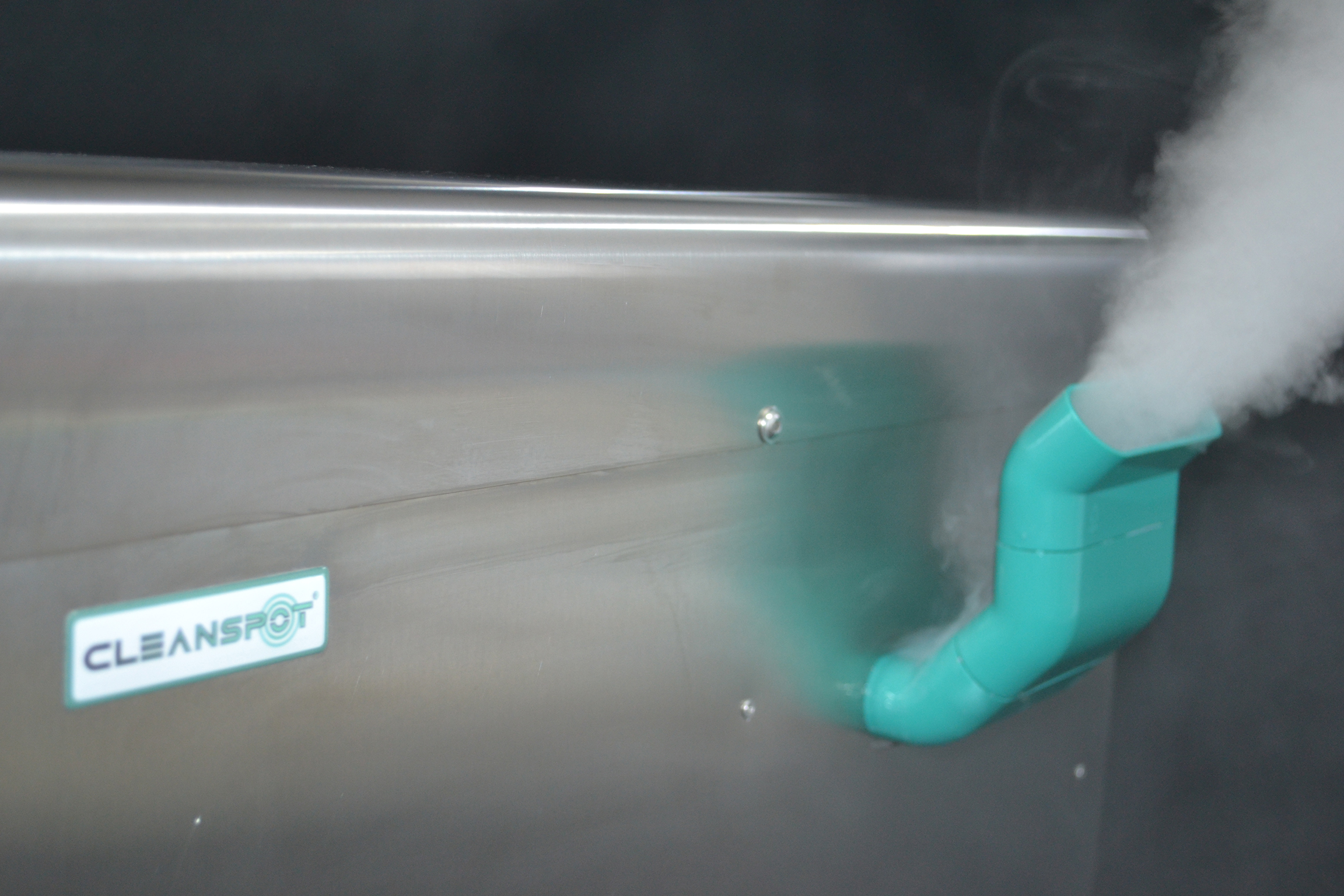

Ultrasonic atomization

A high-frequency transducer vibrates water into a fine 1µm mist, no heating element, no steam.

Reverse osmosis water

RO water is required to prevent mineral deposit buildup and keep mist output clean.

Built-in UVC disinfection

A built-in 265 nm UV-C LED disinfects the unit's own water supply, continuously.

OUR PROCESS

How We Work

From initial plan to installed system, trained, and backed by a year of support.

Consultation & Plan

You send us a plan, or we visit your facility. Together we define the right humidification setup for your needs.

Ordering

Once confirmed, production begins. Standard lead time is 30 days for orders up to 100 units, larger orders may take longer.

Delivery & Installation

Systems are shipped to you directly, or our team installs on-site when needed. IQ/OQ documentation provided to support your compliance audits.

Training

Your team is trained on operation and maintenance after installation.

Guarantee & Support

One year of technical support included with every system.

CleanSPOT installation and support process for industrial ultrasonic humidifiers

INSTALLATION PROCESS

Built Around Your Facility

WHERE THESE UNITS ARE INSTALLED

Industries Served

Agriculture & Greenhouses

Controlled-environment agriculture and greenhouse humidity management.

Warehouses, Printing & Textile

Humidity control for warehousing, printing, paper and textile production.

PURCHASING QUESTIONS

Frequently Asked Questions

Which installation should I choose? −

Choose direct-room equipment when mist should enter the room locally. Choose duct or AHU integration when distribution should follow ventilation airflow. Existing HVAC arrangements, humidity loads and available mounting space determine the final choice.

Can the system connect to a BMS? +

Configuration-dependent integration is available through ON/OFF and 0–10 V analog control. Share the required interface so compatibility can be checked. A BMS connection does not automatically mean a native network protocol is included.

Can capacity exceed 84 L/h? +

Yes. The range includes modular arrangements for higher requirements. The number of modules and their layout are selected for the installation rather than specified by floor area alone.

What information is needed for a quote? +

Provide room dimensions or AHU details, temperatures, current and target RH, airflow, fresh-air percentage and relevant process conditions. Indicate your preferred installation and control interface, or request help choosing them.

Request an Industrial Humidification Proposal

Send your room or AHU details, operating temperatures, target RH and available control signal. Include airflow and fresh-air information where available. We will use the project requirements to recommend a suitable CleanSPOT configuration.

Request system sizing
